Nixie Clock IN18-1-V1

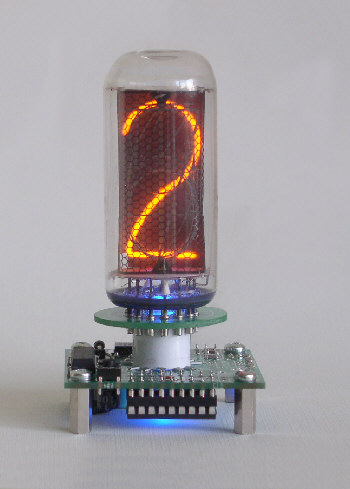

This clock is actually the Z570M-1-V1 with just a simple adapter board which makes it very easy to mount the large IN18 tube.

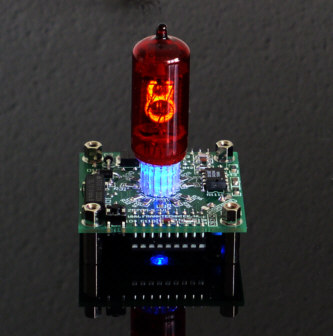

So, if you want to know a bit more about this clock, you can read the section on the Z570M-1-V1 clock. I am not going to offer the IN18-1-V1 as a complete kit. I simply sell the adapter board plus the contact sockets for the tube pins. The distance between the adapter board and the controller board is 12mm.

The IN18 likes a bit more current, so you need to change the R1 resistor on the clock board. For the Z570M it is 22K, but for the IN18 better use 10K. If you have already ordered an IN18 adapter kit, contact me if you need a 10K resistor. From now on, the adapter kit contains this extra 10K resistor.

You can order the IN18-1-V1 adapter kit in my web shop. It is listed under the Z570M-1-V1 clock.

Last updated 6 Jun 2005
